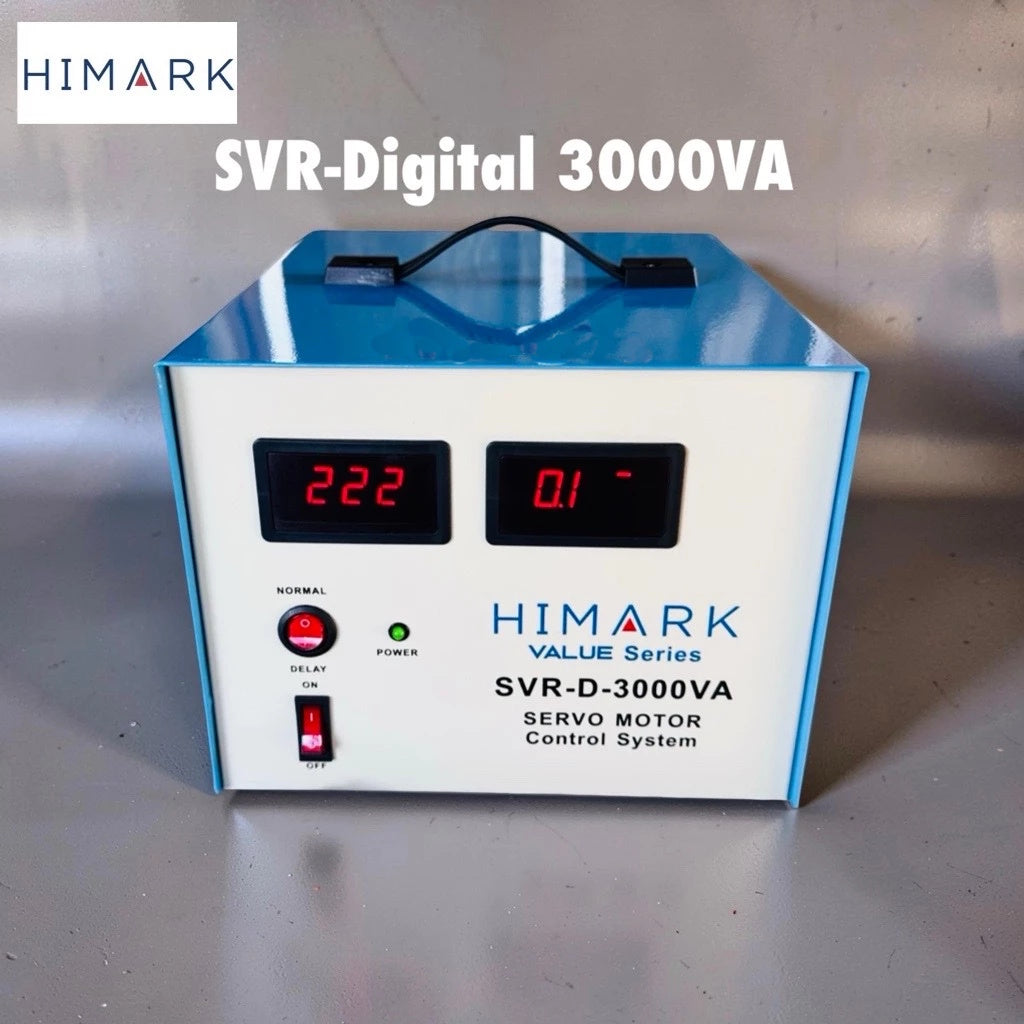

HIMARK SVR-D3000VA AVR - 2100W MAX LOAD - Value Series - Servo Motor Control System -Digital Display

Himark SVR-D3000VA Servo Motor Type Auto Voltage Regulator (AVR)

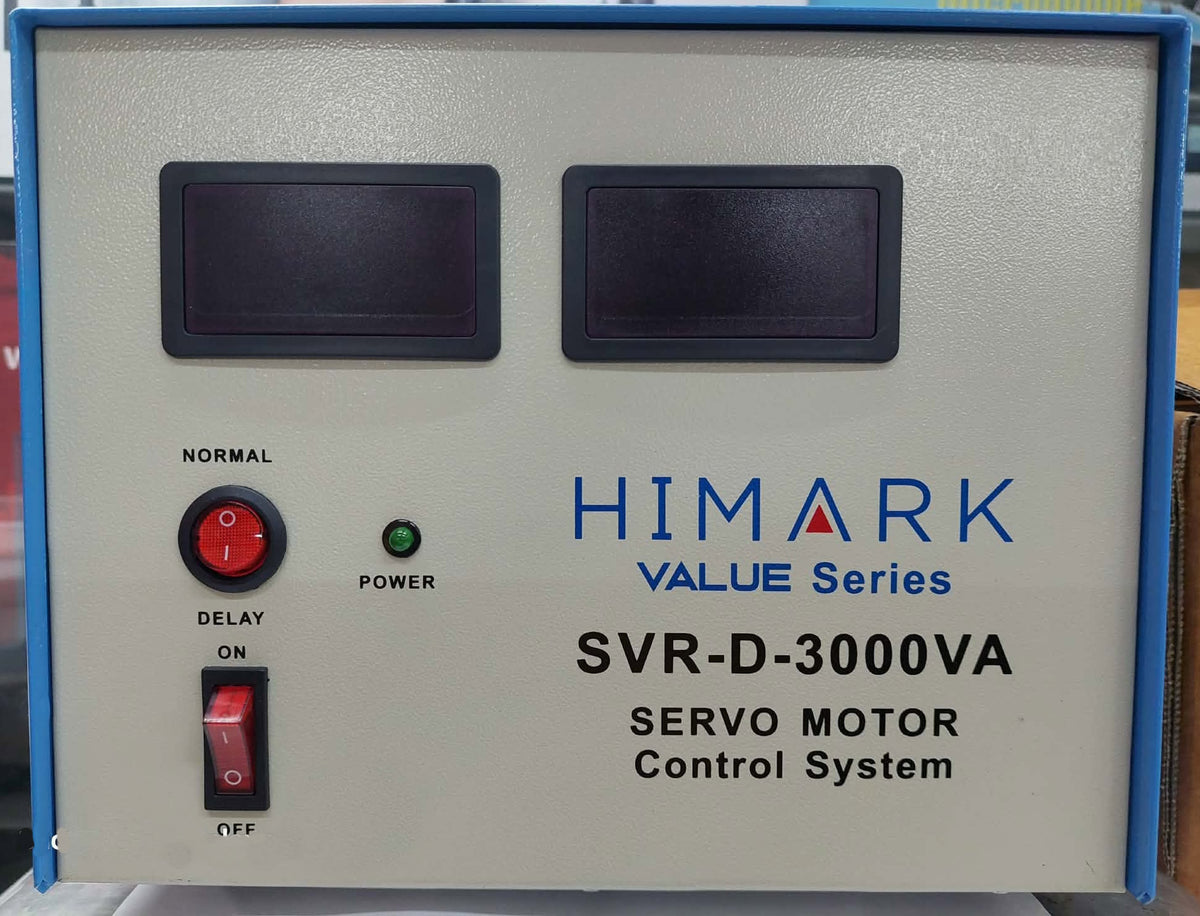

Digital Volt Meter & Digital Ammeter

70% Power Factor resulting in 2100 Watts Maximum Load

Input Voltage: 140VAC- 250VAC

Phase Type: Single Phase

Frequency: 50Hz/60Hz

FOR 220V NON-MOTORIZED LOAD, YOU NEED 2X THE POWER CONSUMPTION OF AVR

FOR 220V MOTORIZED LOAD, YOU NEED 3X THE POWER CONSUMPTION OF AVR

FOR 110V NON-MOTORIZED LOAD, YOU NEED 4X THE POWER CONSUMPTION OF AVR

FOR 110V MOTORIZED LOAD, YOU NEED 6X THE POWER CONSUMPTION OF AVR

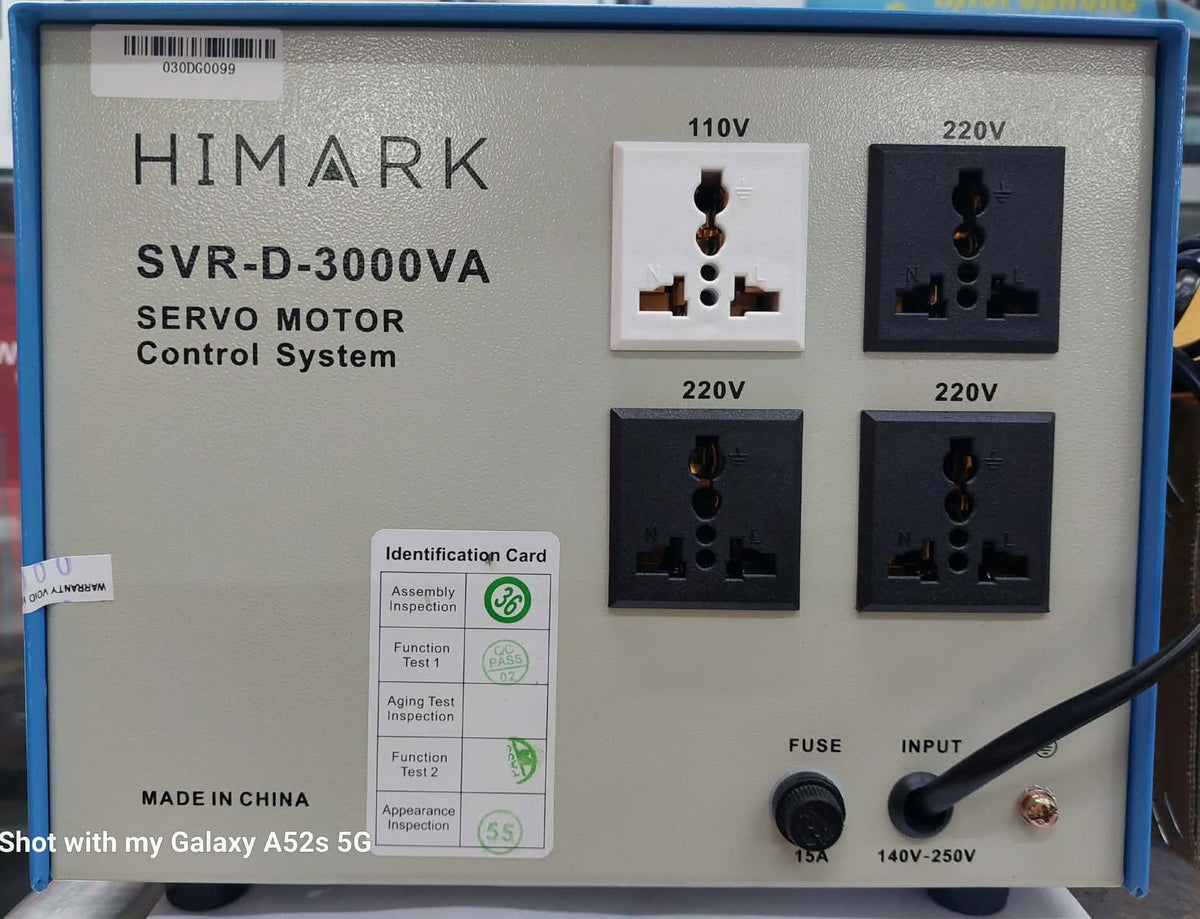

4 Universal Sockets - 1 x 110V AC Outlet, 3 x 220V ACOutlet

Short Circuit Protection

Overload Protection

Time Delay Function - With Turn On Delay Selector- Short: 6 Secs, Long: 180 Secs

Best for TVs, Computers, Karaoke Players, Amplifiers, Refrigerators

Actual Size (L X W X H): 29cm x 24cm x 20cm

Actual Weight: 7.5 kg

Made in China

Warranty: 1 Year Carry-in

(carryin warranty requires you to personally bring or ship your defective product to an authorized service center for diagnosis and repair, and then pick it up yourself once the work is done.)

What is in the Box: 1 Piece Automatic Voltage Regulator, User Manual with Warranty Card
